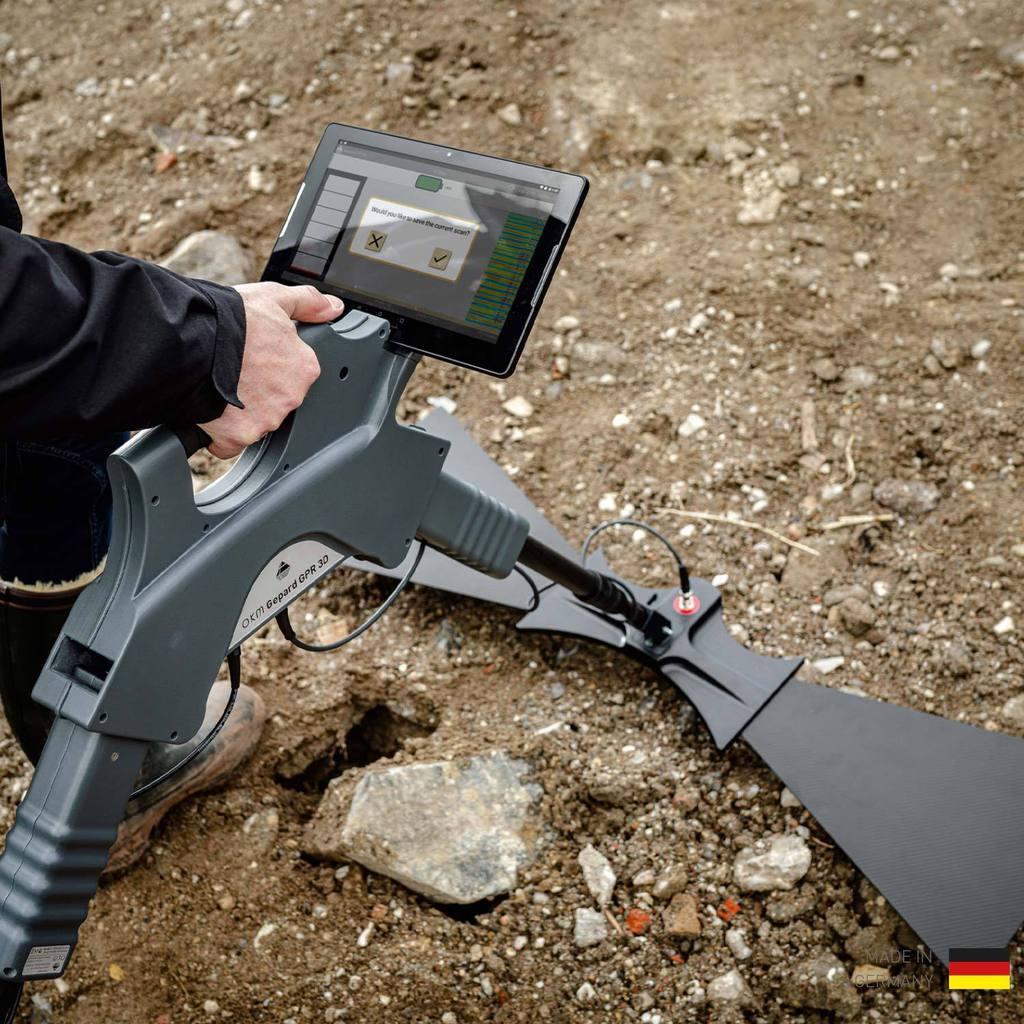

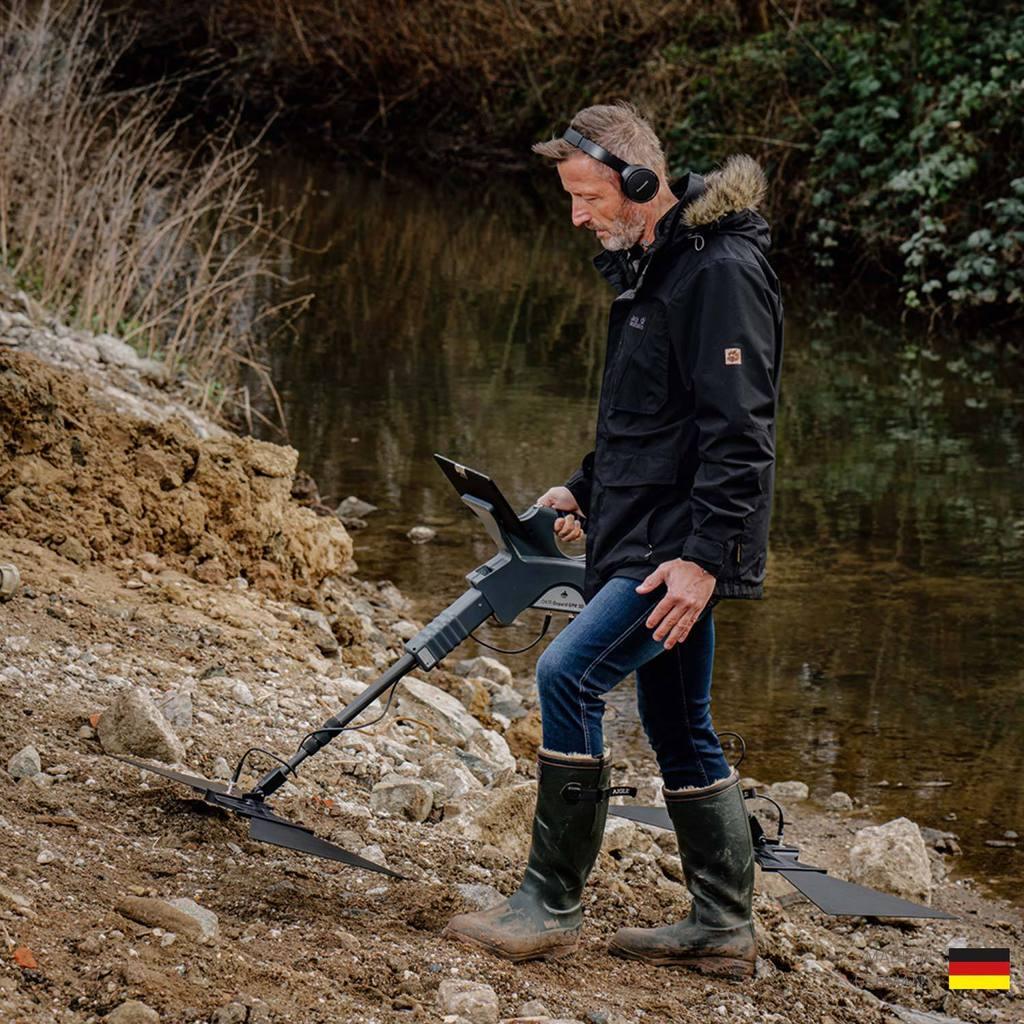

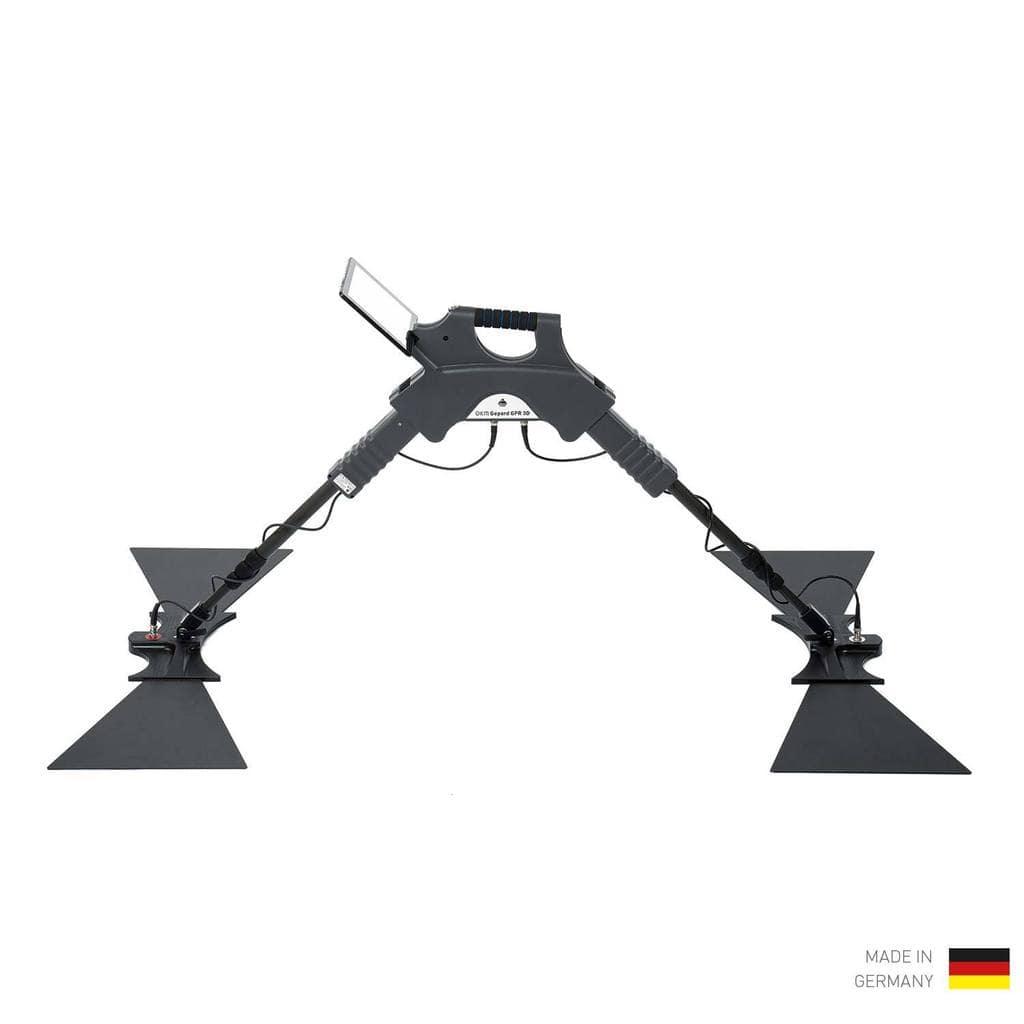

Gepard GPR Ground Penetrating Radar by OKM
The Gepard GPR is a very flexible, transportable, and powerful ground penetrating radar for detecting underground items like pipelines, cavities, cables, conduits, tunnels, bunkers, foundations, and more. The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths of up to 40 meters deep. This light, agile, and compact unit can be easily used by a single operator.
Highlights
- Warranty: 2-year limited
- Total Weight: 3.7 lbs. (1.7 kgs)
- Frequency: 60 MHz up to 300 MHz
- Voltage: 9.6-13.2 VDC, 18 W Maximal
- Data Transmission Technology: Bluetooth
- Depth: Reaches depths of up to 131 ft. deep (40 m)
- Software: Can integrate GPS Signals, Google Maps, automatic filtering, and entering notes for later recollection of specific scan details
The Radar
(Detection and Radio Range) sends a signal to the ground and receives back the signal to detect anomalies on the surface, such as the following:
- Underground walls, basements, and concrete reinforcements
- Hidden cavities, graves, and sepulchers
- Water level and underground rivers, and aquifers

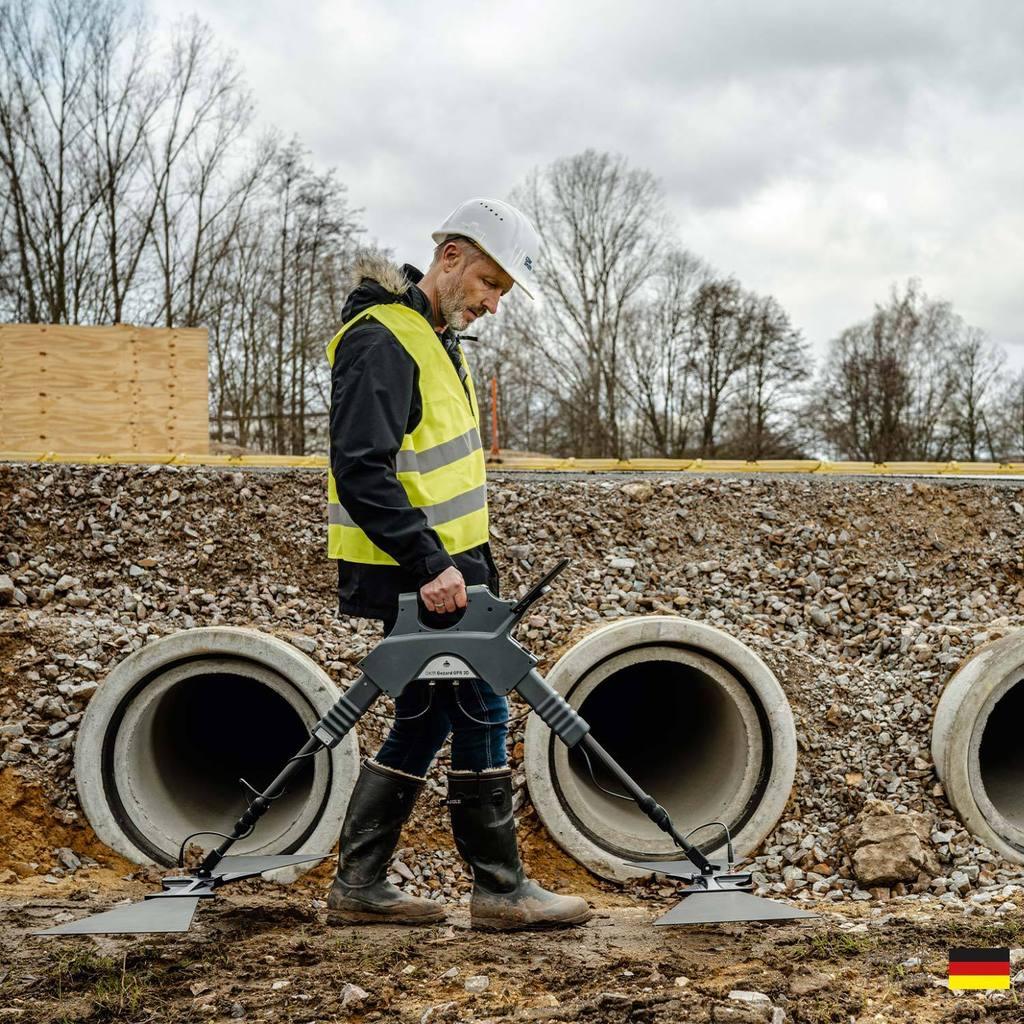

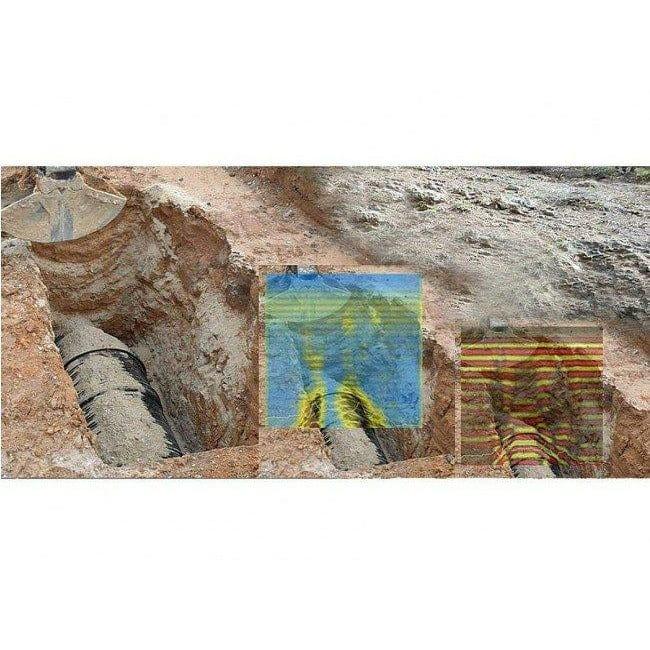

- Buried pipes, conduits, and cable harnesses
- Stuffed wells, galleries, ditches, and huts
- Septic tanks, distribution boxes, and drainage pipes
- Secret tunnels, bunkers, and shelters
- Buried treasure chests, statues, and hiding places
The Gepard ground penetrating radar uses multiple transmission frequency ranges starting at 60 MHz and up to 300 MHz by adjusting its telescopic antennas. In addition, it supports automatic adjustments to optimize your field surveys on specific soil types.

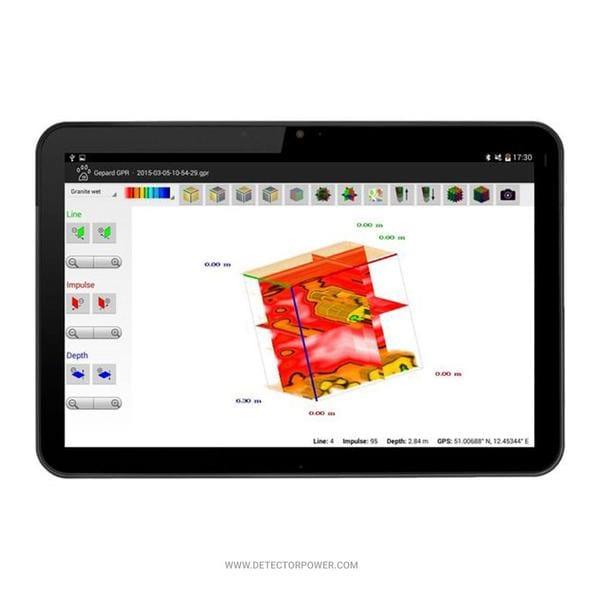

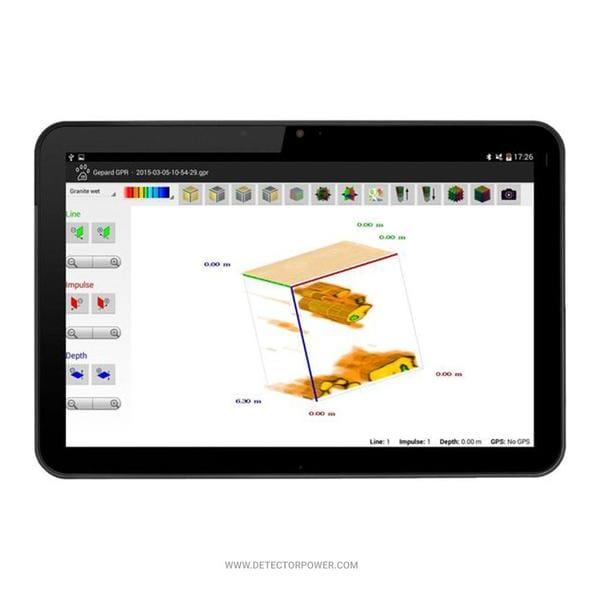

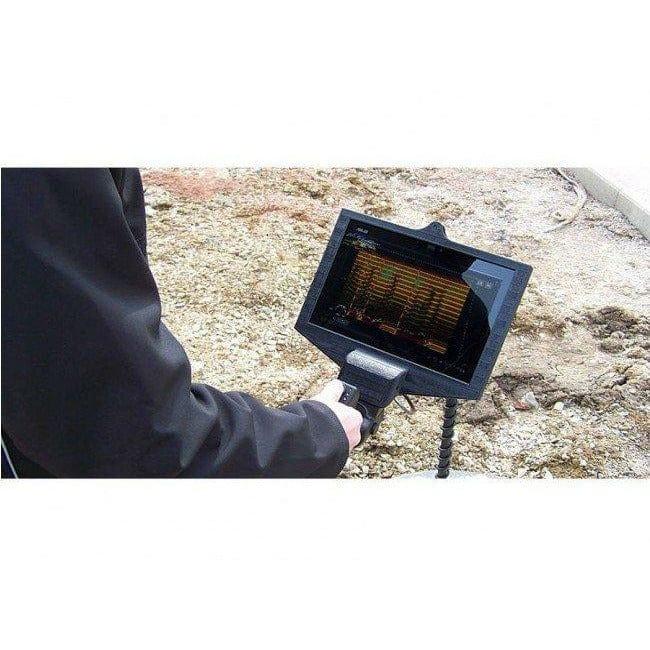

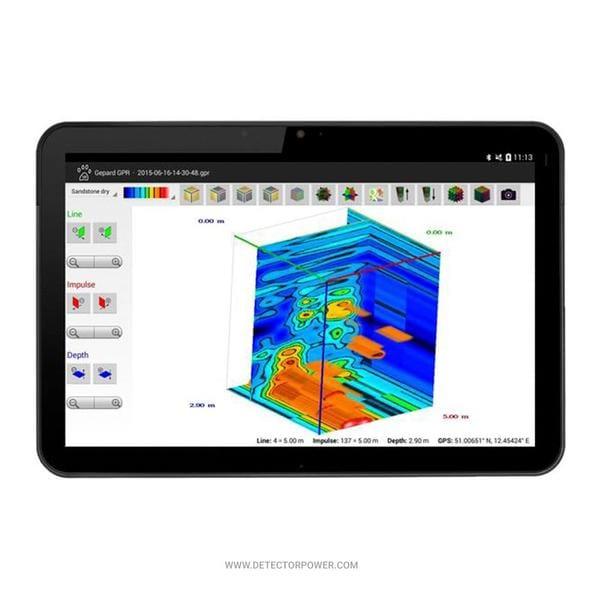

The measured ground-penetrating radar data is transferred directly to an Android tablet. The Android software receives the data via Bluetooth and displays it immediately on the screen.

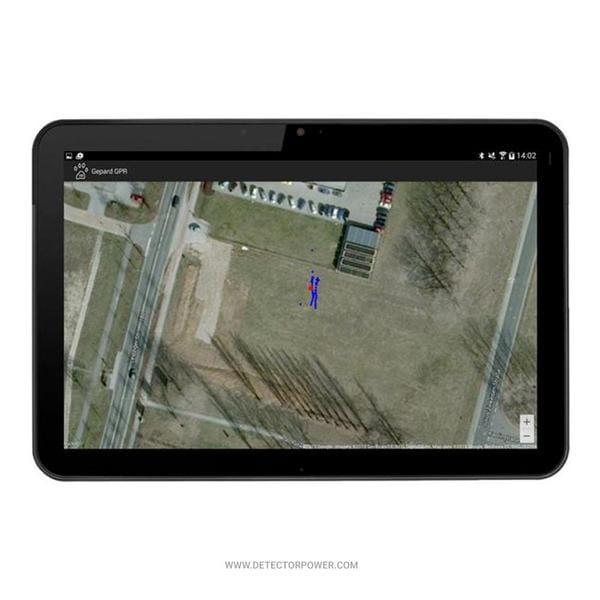

The software has the ability to integrate a signal with Google Maps, automatic filtering, and note input for later recall of specific scan details. In addition, automatic filtering capabilities are useful for improving your scan results and finding hidden objects and structures more easily. Due to the integrated GPS, all scan positions can be stored together with the scan data.
Android software applications are available in the following languages:
English, Français, Deutsch, Español, λληνικά, Italiano, فارسی.
Optional accessories for the ground-penetrating radar "Gepard GPR"
OKM Power Pack: Instead of using AAA batteries, you can also use the PowerPack to operate the "Gepard GPR" ground-penetrating radar. That way, you can operate your ground radar for up to 10 hours at a time without having to charge the batteries every 3 hours.

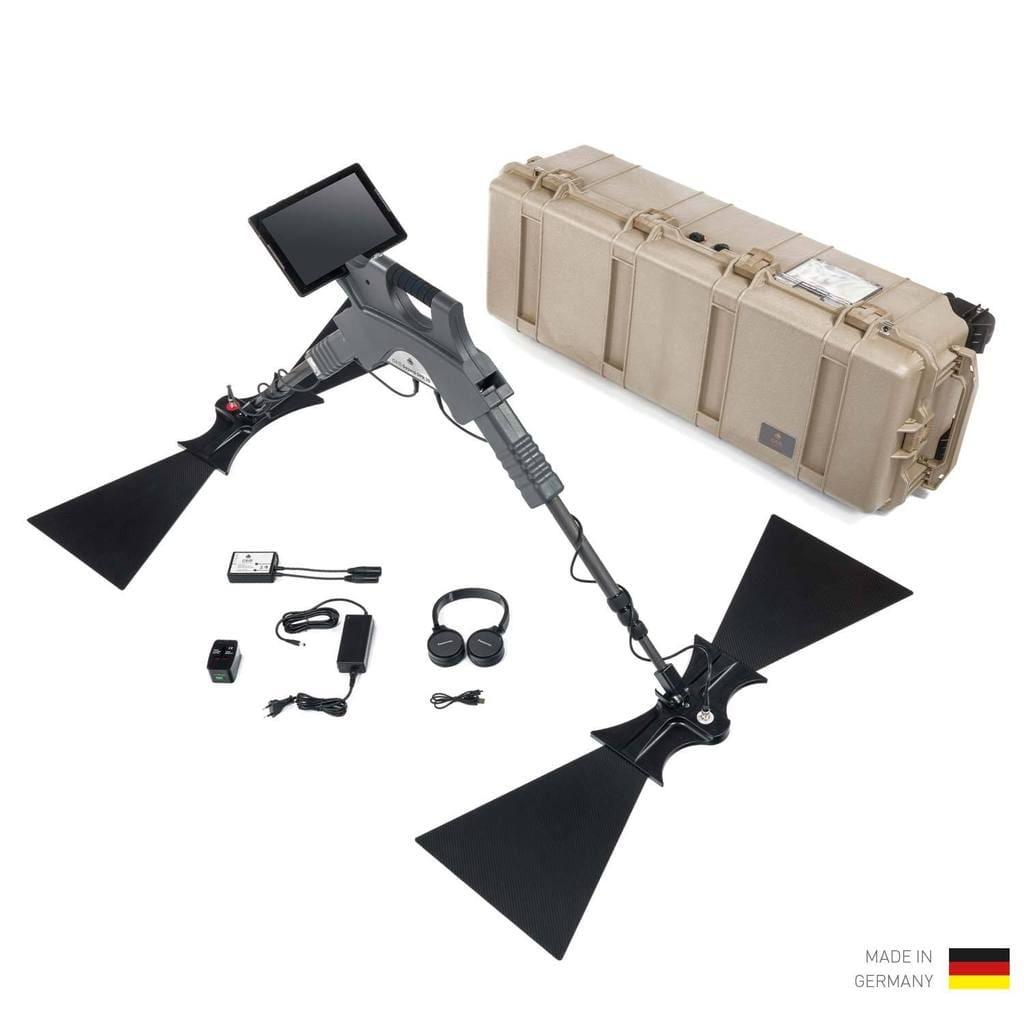

Factory Included Accessories
Tablet PC(6) AntennaControl UnitTravel AdapterGPR Receiving Unit(8) AA batteries 1.5VGPR Transmitting UnitCharger for Control UnitWireless Headphones Incl. BatteriesWaterproof and Shock Resistant Peli Case

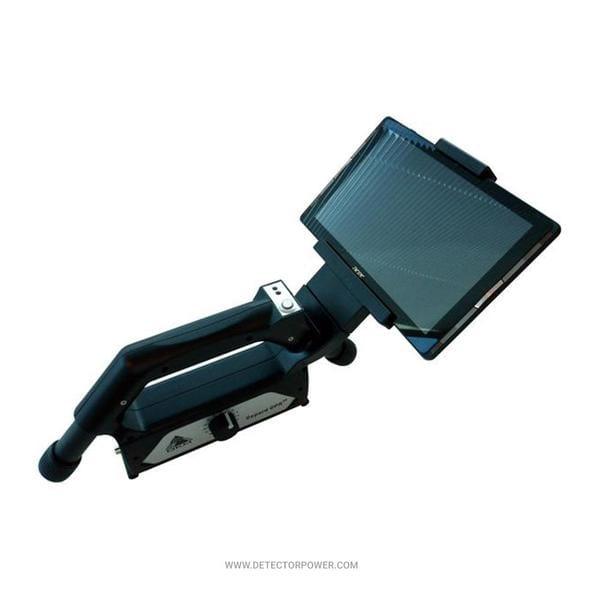

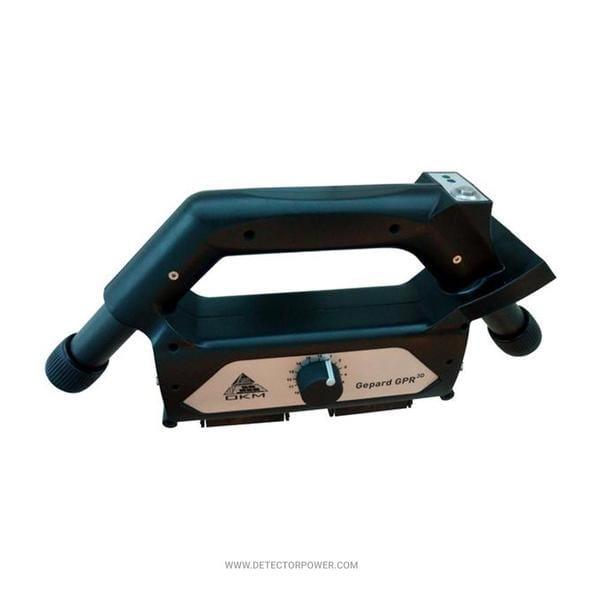

Control unit
- Dimensions (H x W x D): 450 x 260 x 130 mm
- Weight: approx. 1.6 kg
- Input voltage (max.): 8.4 V DC / 1.0 A
- Operating temperature: –20°C – 55°C
- Storage temperature: –25°C – 60°C
- Waterproof: No
- Operating time: approx. 4 hours
- Air humidity: 5% – 70%
- Feedback: acoustic, visual
- Protection Type: IP 20
- Data Transmission Technology: WiFi, 2.4 GHz
- Transmission Frequency Range: 60 – 300 MHz
- Timing/Sampling Adjustments: 4 Levels
- Complete Cycle Measurements: 9 per second
Telescopic shaft
- Dimensions (H x W x D): 70 x 60 x 590–1630 mm
- Weight: 0.80 kg
- Operating temperature: –20°C – 55°C
- Storage temperature: –25°C – 60°C
- Waterproof: No
- Air humidity: 5% – 70%
- Protection Type: IP 20
- Internal Battery: 7.26 V / 2600 mAh

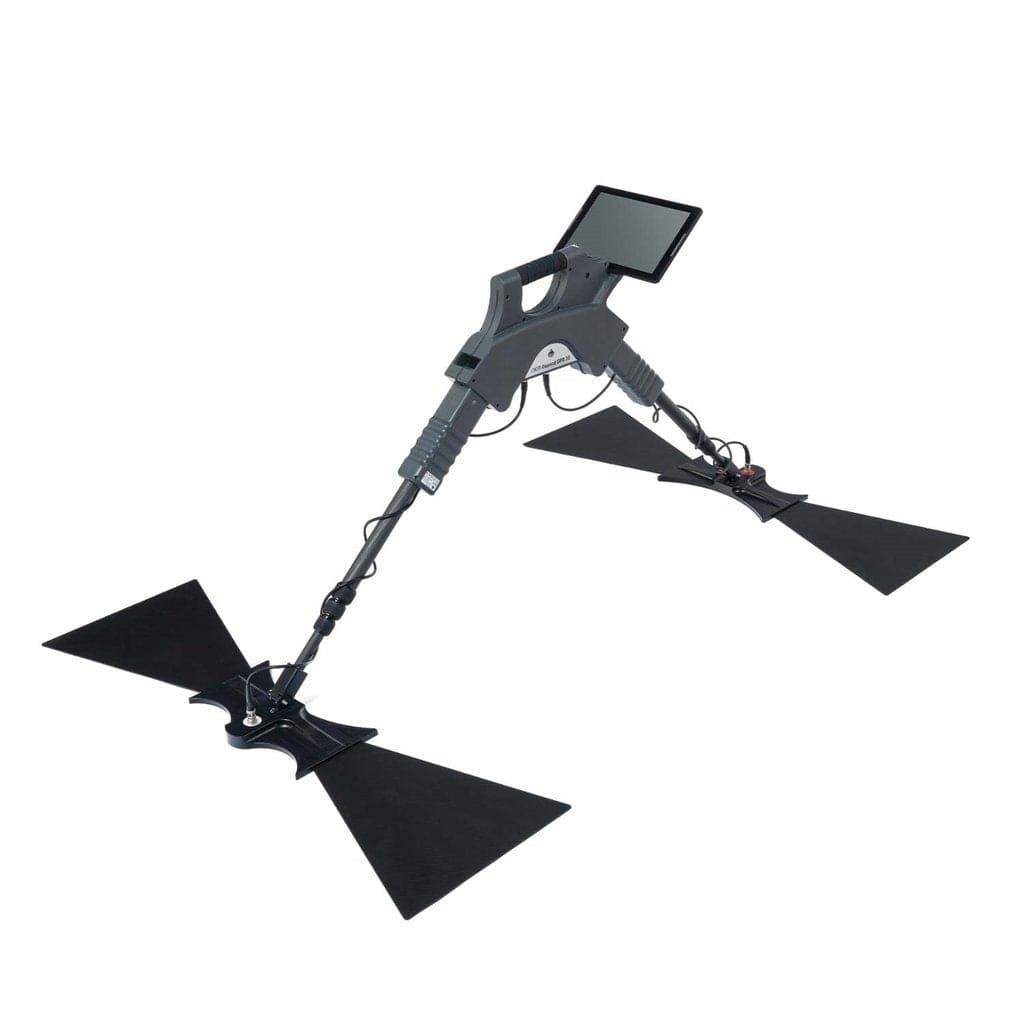

Triangular antenna (unshielded)
- Dimensions (H x W x D): 1010 x 330 x 50 mm
- Weight: 1.50 kg
- Operating temperature: –20°C – 55°C
- Storage temperature: –25°C – 60°C
- Waterproof: No
- Air humidity: 5% – 70%
- Protection Type: IP 20
